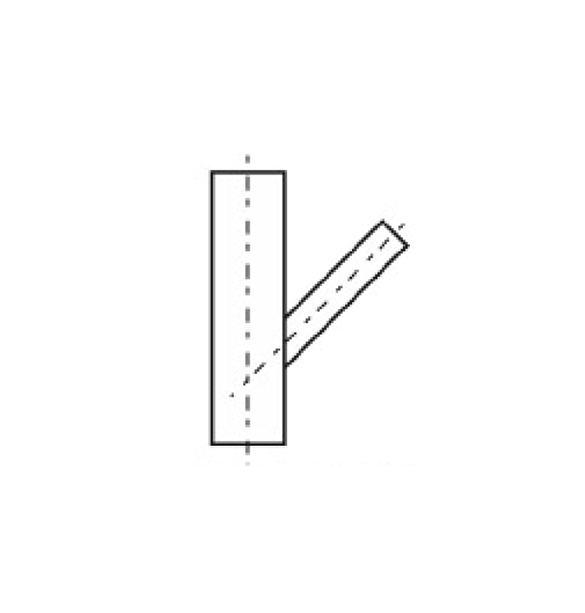

- Manufactured to the specs and tolerances of ASTM A774.

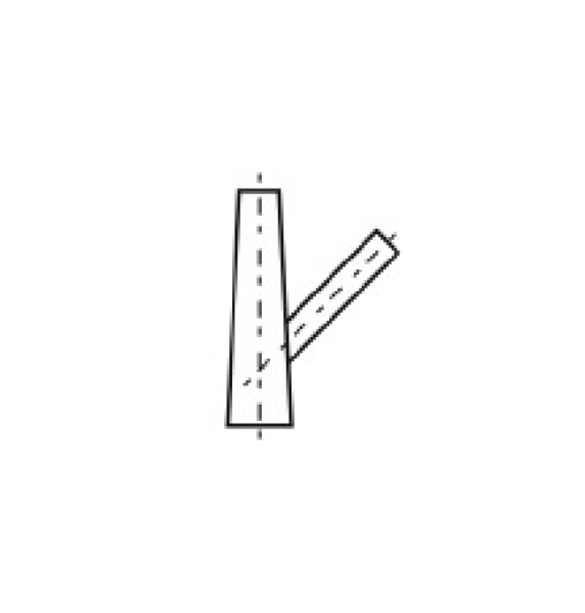

- Reducing laterals follow the same dimensions as straight laterals

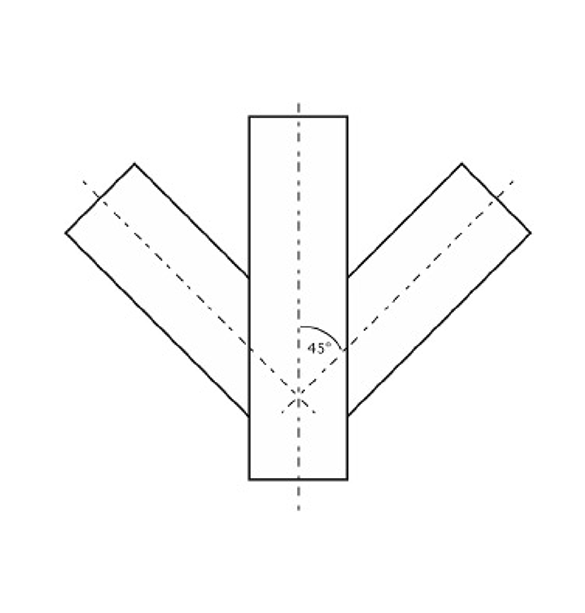

- Custom dimensions available upon request

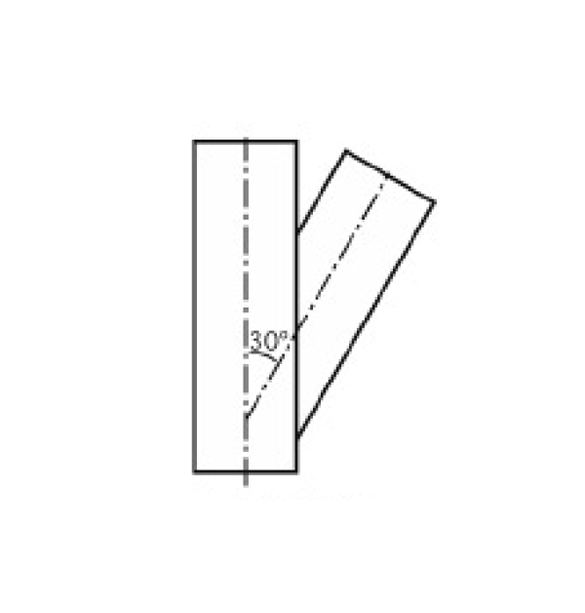

- 30 or 60 Laterals also available
- Available in 304L, 316L, 317L, carbon steel, or other materilas upon request.

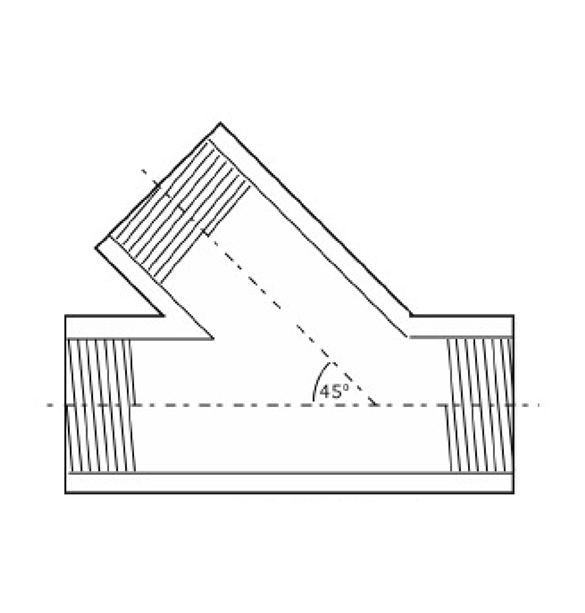

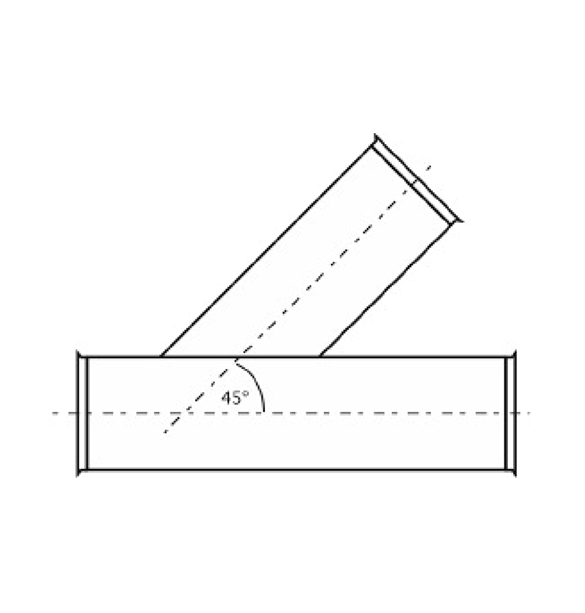

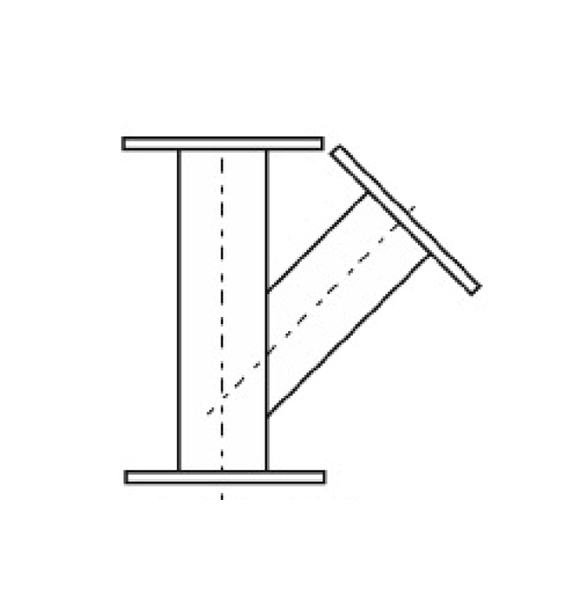

- Available ends include buttweld, beveled, grooved, flanged, or Van Stone
Laterals – by definition – don’t fit within the scope exceptional requirements reaching beyond A774 are receptive to laterals built to A774, then XRay’d. In conjunction with independent labs, we can offer XRay to ASME specs including the fairly stringent B31.1 upon resquest.
17 1/25 3/41 3/4
| SIZE (IPS / OD) | Dimension | ||
|---|---|---|---|

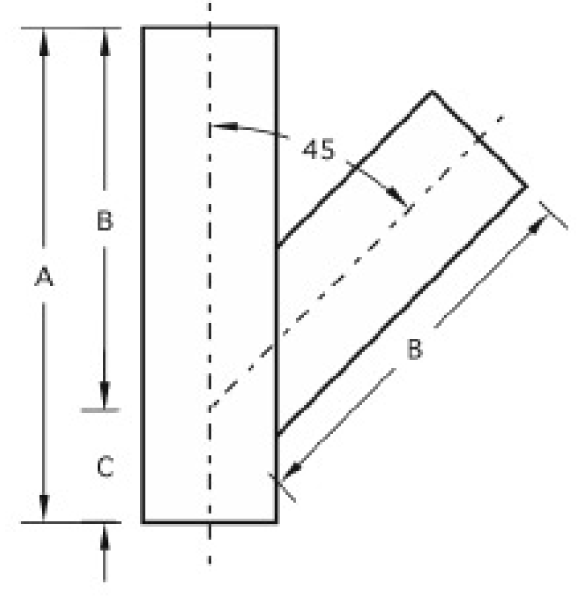

| A | B | C | |
| 1-1/4 | 13 | 11 | 2 |
| 1-1/2 | 13 | 11 | 2 |
| 2 | 15 | 12-1/2 | 2-1/2 |
| 2-1/2 | 19 | 16 | 3 |
| 3 | 19 | 16 | 3 |
| 4 | 21 | 18 | 3 |
| 5 | 24 | 20-1/2 | 3-1/2 |
| 6 | 25-1/2 | 22 | 3-1/2 |
| 8 | 31-1/2 | 27 | 4-1/2 |
| 10 | 35 | 30 | 5 |
| 12 | 39-1/2 | 34 | 5-1/2 |
17 1/25 3/41 3/4
| SIZE (IPS / OD) | Dimentions | ||
|---|---|---|---|
| A | B | C | |
| 1 1/4 | 9 | 7 | 2 |
| 1 1/2 | 9 | 7 | 2 |
| 2 | 10 1/2 | 8 | 2 1/2 |
| 2 1/2 | 12 | 9 1/2 | 2 1/2 |
| 3 | 13 | 10 | 3 |
| 4 | 15 | 12 | 3 |
| 5 | 17 | 13 1/2 | 3 1/2 |
| 6 | 18 | 14 1/2 | 3 1/2 |
| 8 | 22 | 17 1/2 | 4 1/2 |
| 10 | 25 1/2 | 20 1/2 | 5 |
| 12 | 30 | 24 1/2 | 5 1/2 |
| 14 | 33 | 27 | 6 |
| 16 | 36 1/2 | 30 | 6 1/2 |
| 18 | 39 | 32 | 7 |
| 20 | 43 | 35 | 8 |
| 24 | 49 1/2 | 40 1/2 | 9 |
| 30 | 59 | 49 | 10 |
| 36 | 70 | 59 | 11 |
