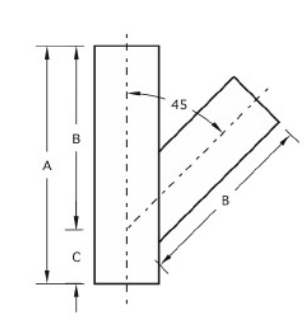

| SIZE (IPS / OD) | DIMENSIONS | ||
| A | B | C | |
| 1 | 7 1/2 | 5 3/4 | 1 3/4 |
| 1 1/4 | 9 | 7 | 2 |
| 1 1/2 | 9 | 7 | 2 |
| 2 | 10 1/2 | 8 | 2 1/2 |
| 2 1/2 | 12 | 9 1/2 | 2 1/2 |
| 3 | 13 | 10 | 3 |
| 4 | 15 | 12 | 3 |
| 5 | 17 | 13 1/2 | 3 1/2 |
| 6 | 18 | 14 1/2 | 3 1/2 |
| 8 | 22 | 17 1/2 | 4 1/2 |
| 10 | 25 1/2 | 20 1/2 | 5 |
| 12 | 30 | 24 1/2 | 5 1/2 |
| 14 | 33 | 27 | 6 |
| 16 | 36 1/2 | 30 | 6 1/2 |
| 18 | 39 | 32 | 7 |
| 20 | 43 | 35 | 8 |
| 24 | 49 1/2 | 40 1/2 | 9 |
| 30 | 59 | 49 | 10 |
| 36 | 70 | 59 | 11 |
Laterals – by definition – don’t fit within the scope of ASTM A403. Some customers with exceptional requirements reaching beyond A774, then XRay’d. In conjunction with independent labs, we can offer XRay to ASME specs including the fairly stringent B31.1 upon request.
- Manufactured to the specs and tolerances of ASTM A774.

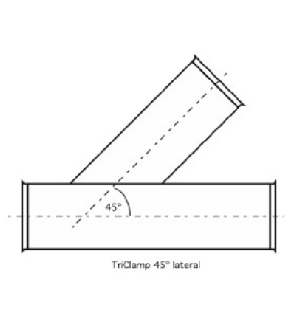

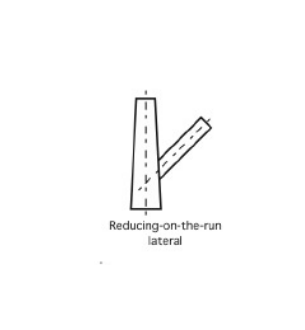

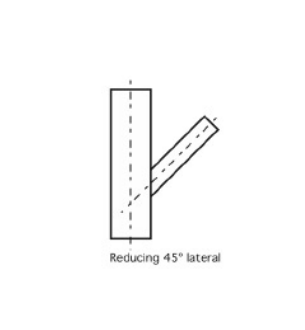

- Reducing laterals follow the same dimensions as straight laterals.
- Custom dimensions available upon request.

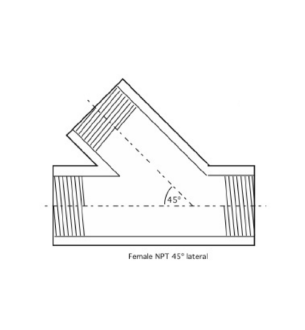

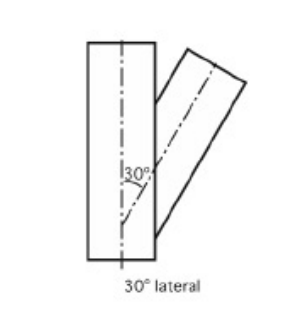

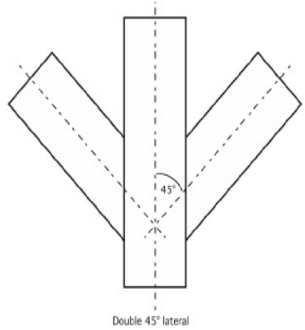

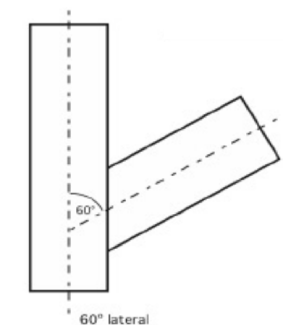

- 30o or 60oLaterals also available.
- Available in 304L, 316L, 317L, carbon steel or other materials upon request.

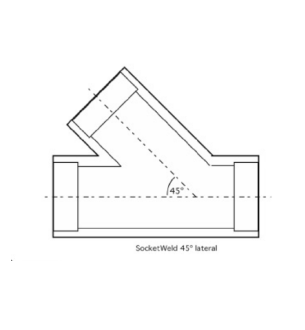

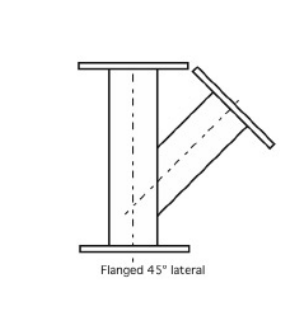

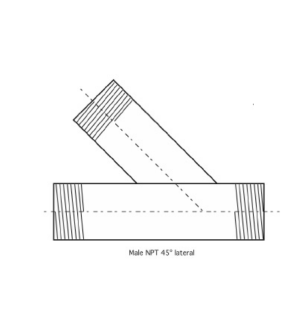

- Available ends include buttweld, beveled, grooved, flanged, or Van Stone.
