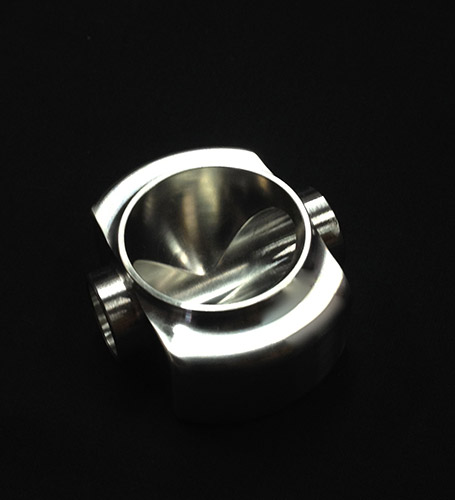

Appleton Stainless was selected by a food, dairy, and bio-pharmaceutical industries customer looking to machine instrument tee bodies. This highly regulated application required that the metal fittings be machined to close tolerances and applicable material standards. By applying our precision machining capabilities directly to the customer’s needs, we were able to deliver a complete solution on schedule.
These instrument tee bodies varied in size from 1/2 x 1” to 1-1/2 x 2”, but were all manufactured from 316L stainless. We elected to use conventional CNC turning and milling strategies to cut the parts quickly and precisely from standard round bar stock. Light polishing followed, establishing a 20RA outer surface. Dimensional tolerances were held to ±0.002”. Fitting and documentation travel throughout the manufacturing process, ensuring high levels of output quality.
All fittings were manufactured and delivered on a 3-week schedule, allowing the customer to react quickly to changing equipment regulatory standards. All machined components were held to A-276 standards. Our understanding of industry requirements, an ability to comply with new industry standards, and our timeliness of lead times in a competitive market allowed us to really deliver on this project in high pressure circumstances.
If you’d like to learn more about this project, see the table below, or contact Appleton Stainless today.
Instrument Tee Bodies Highlights
- Project Name
- Instrument Tee Bodies
- Project Description
- These instrument tee bodies are used within food, dairy and bio-pharmaceutical applications.
- Capabilities Applied/Processes
Cutting (from Round Bar)
- Equipment Used to Manufacture Part
- CNC Lathe and CNC Mill
- Overall Part Dimensions
- Range: 1/2x1 up to 1-1/2x2
- Tightest Tolerances
- +/- 0.002
- Material Used
- 316L, AL6XN
- Material Finish
- In process testing/inspection performed
- Certified Material Test Report (CMTR)
- Industry for Use
- Food, Dairy, Bio-Pharmaceutical
- Delivery/Turnaround Time
- Stock to 3 weeks
- Delivery Location
- North America
- Standards Met
