Sweep Elbows

Examples of how to measure to meet your requirements…

Size | IPS / OD | wall thickness | alloy | degree of bend (90 / 60 / 45 / 30 / *other*) | CenterLine Radius (CLR) | Tangents | finish or polish

6 OD 12ga 304L 60o Sweep x 48″ CLR, no tangents, 32RA ID only
4 IPs S10 316L 90o Sweep x 36″ CLR, 6″ tangents, mill finish

  • Available in 304L & 316L
  • Available in wide range of pipe and tube sizes.
  • Wall thickness varies based on dimensions of pipe or tube.
  • Available in various angles 60o, 90o, 45o, 30o other angles available

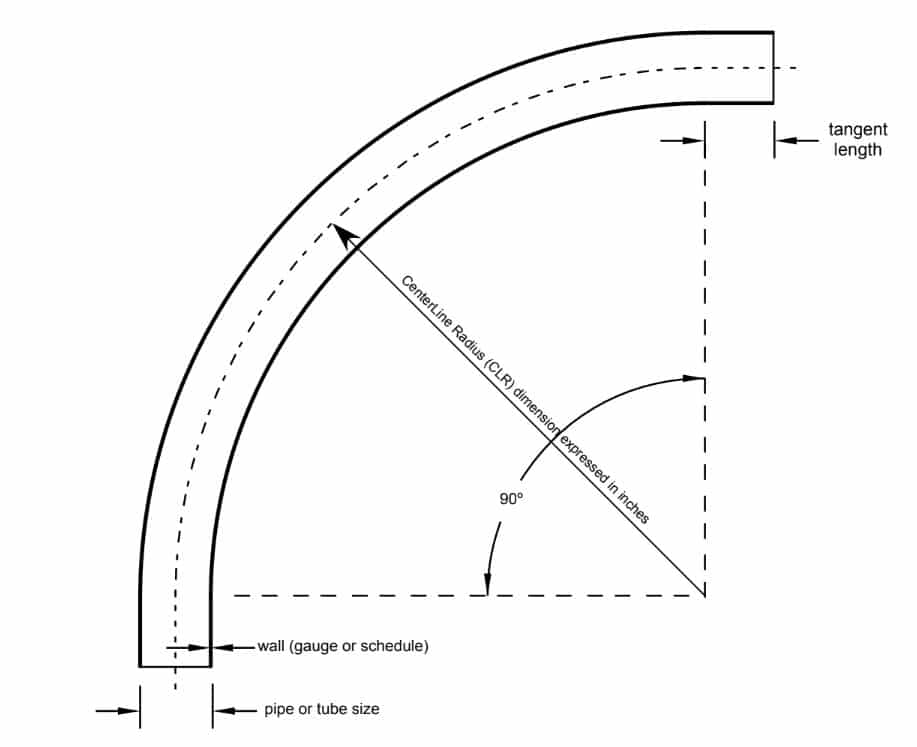

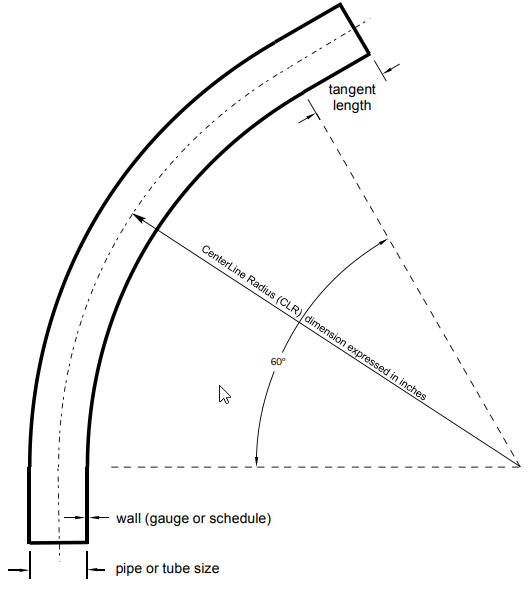

  • Measured on Center Line Radius (see example)
  • End connections available including butt weld, clamp ferrules and grooved
  • Various tangent lengths available
  • Finishes – Mill finish, Polish ID only, ID & OD.
  • Heat #’s, Mill Certifications available.
