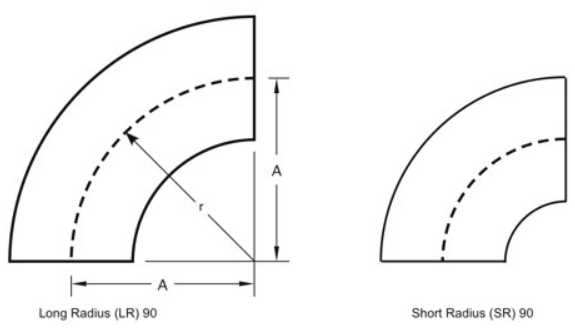

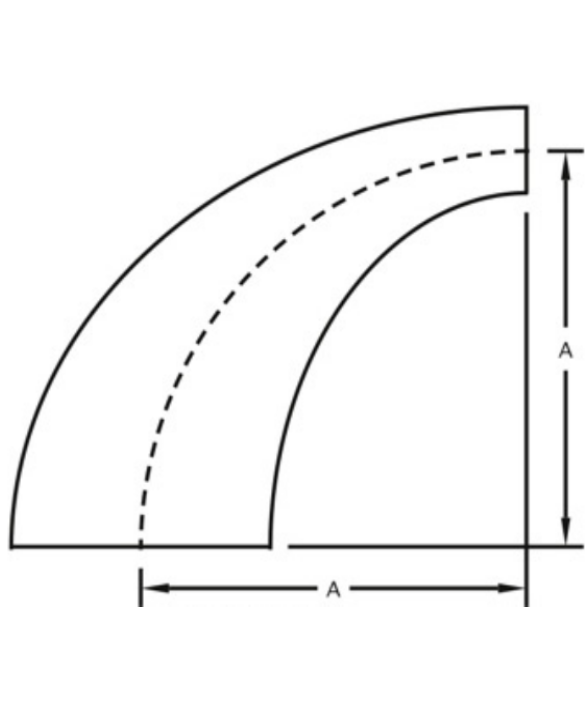

Long Radius 90 Elbow (LR90)

Long Radius 90 Elbow (LR90)

SIZEAR(radius)
1-1/22.252.25
233
2-1/23.753.75
34.504.50
3-1/25.255.25
466
57.507.50
699
81212
101515
121818
142121
162424
182727
203030
243636

Short Radius 90 Elbow (SR90)

Short Radius 90 Elbow (SR90)

SIZEAR(radius)
1-1/21.501.50
222
2-1/22.502.50
333
444
555
666
888
101010
121212

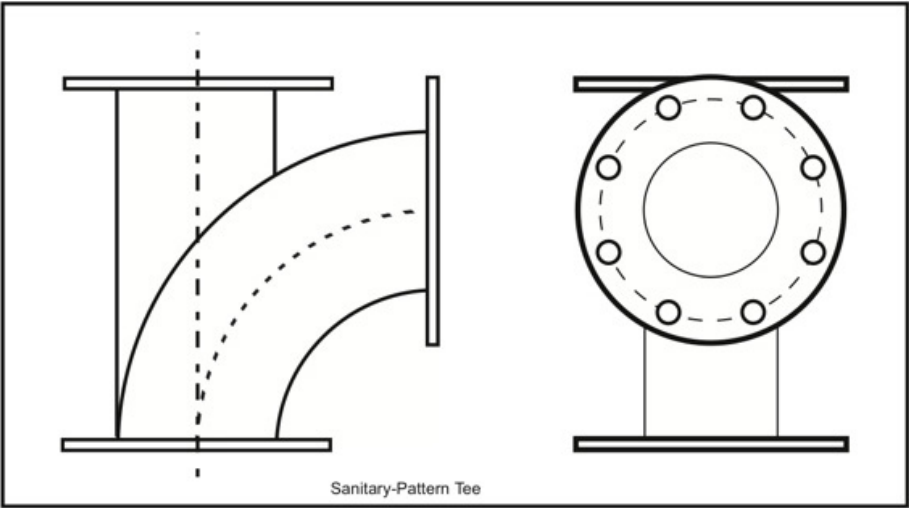

  • Manufactured to the specs and tolerances of ASTM A774 or A403 [CR/WPW/WPWX/WPS]
  • Custom dimensions available upon request.
  • Available in 304L, 316L, 317L or other materials upon request.

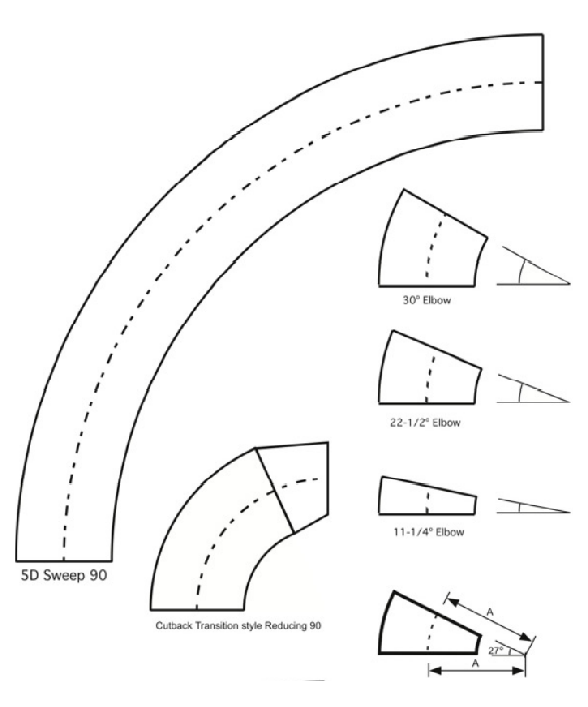

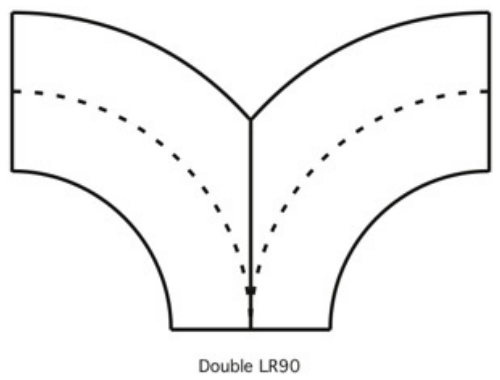

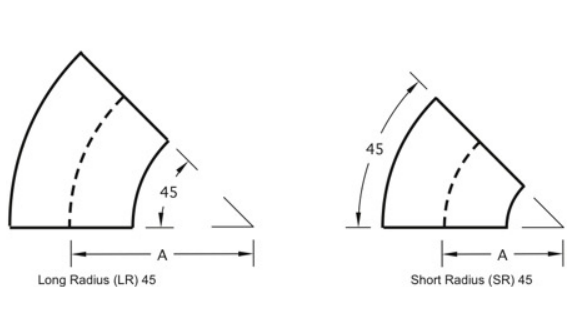

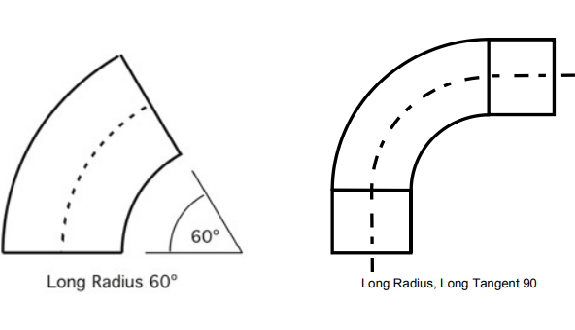

  • Available in odd degrees, atypical radii, unusual center-to-end dimensions.

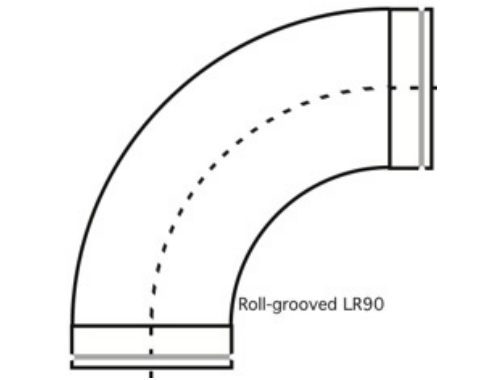

  • Available ends include buttweld, beveled, grooved, flanged, or Van Stone.
