Run and branch are longer (than 45° lateral) to maintain approx 5* span on most sizes at Dimension ‘Z’ to accommodate field welding.

SIZE
(A)

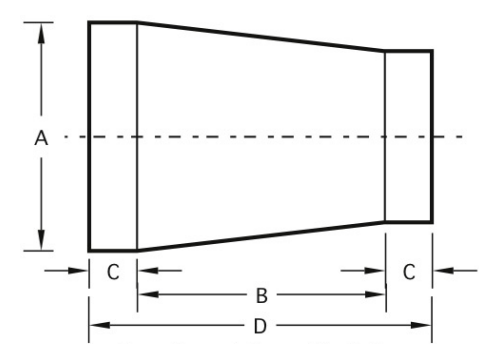

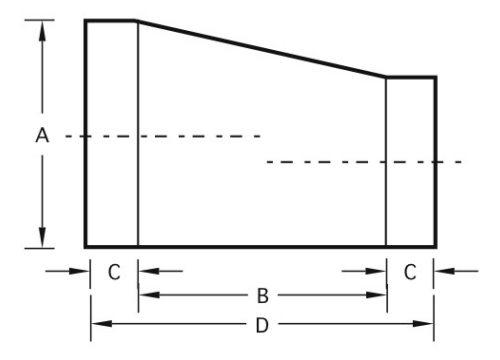

DIMENSIONS
BCD
33 1/21 1/46
441 1/27
65 1/21 3/49
862 1/211
1072 1/212
128314
14131 1/216
1614218
1815219
2020224
2420224
  • Commonly used in instances where a flanged or grooved joint is required.
  • MANUFACTURED TO THE SPECS AND TOLERANCES OF ASTM A774.
  • Length listed conforms to ANSI B16.1 and is consistent with Tappi standard.
  • Custom dimensions available upon request.
  • This length may differ from some manufacturers.
  • Available in 304L, 316L, 317L, or other materials upon request.

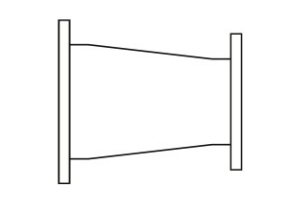

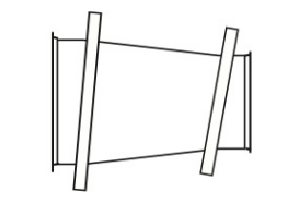

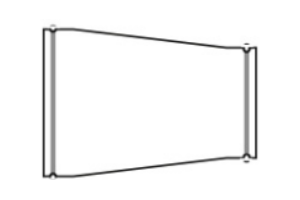

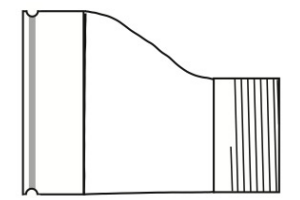

  • Available ends include buttweld, beveled, grooved, flanged, or Van Stone.
