Concentric Reducer
Eccentric Reducer

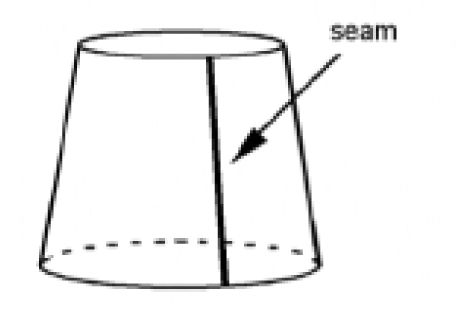

Single-seam construction ( typical )

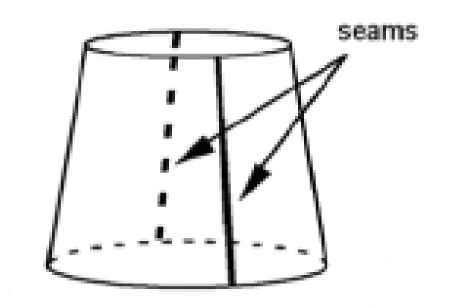

Two-seam construction ( atypical )

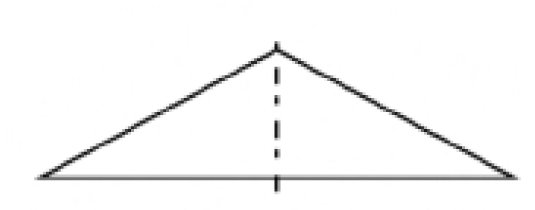

Chinese cap, a.k.a 8*0 conc reducer
Tapered wall 12GA * 16GA

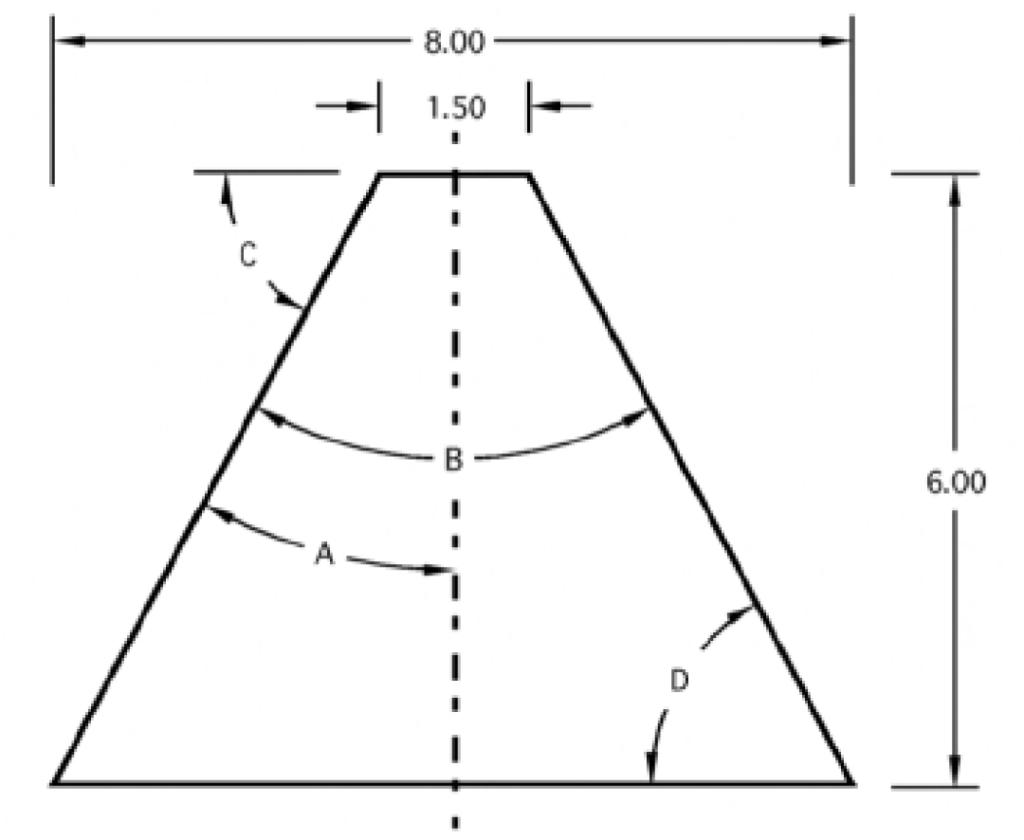

Building a reducer based on a specific slope angle...
A = Degrees of slope off of CenterLine
B = Degrees of slope per inclusive angle
C = Degrees of slope from Perpendicular to CL
D = Angle C

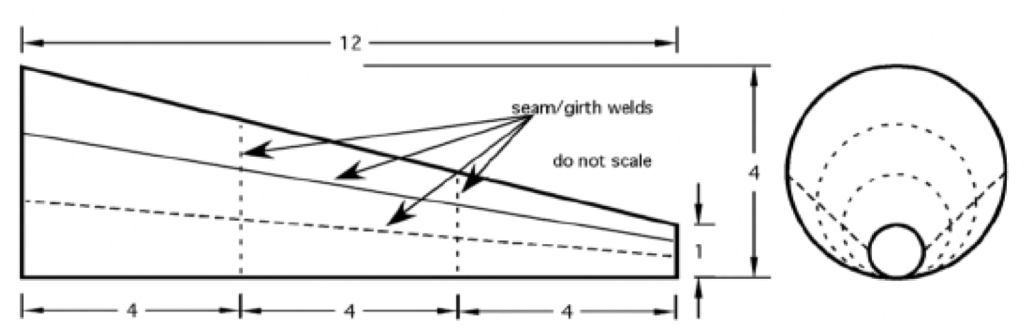

Multi-piece segmented reducers
- Manufactured to the specs and tolerances of ASTM A774
- Length listed conforms to ANSI B16.9 specifications.
- Custom dimensions available upon request.
- Two-seam construction may be required on some unusual configurations.
- Available in 304L. 316. 317L. or other materials upon request.
- Available ends include buttweld or beveled

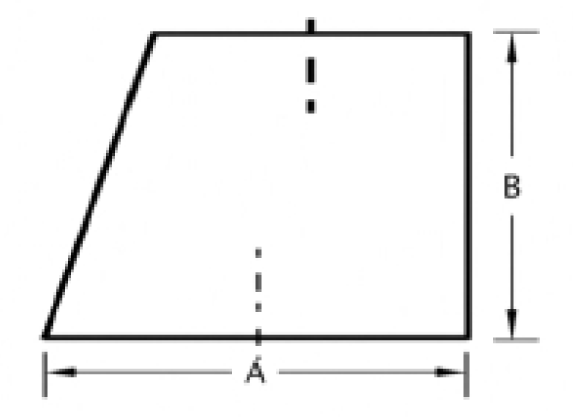

| Size (A) | Length (B) |
|---|---|
| 3 | 3 1/2 |
| 4 | 4 |
| 5 | 5 |
| 6 | 5 1/2 |
| 8 | 6 |
| 10 | 7 |
| 12 | 8 |
| 14 | 13 |
| 16 | 14 |
| 18 | 15 |
| 20 | 20 |
| 24 | 20 |
| 30 | 24 |
| 36 | 24 |
ANSI B16 9 dimensions shown above Other lengths available upon request
