  1. Is it a Wye? …or is it a Lateral?

    Comments Off on Is it a Wye? …or is it a Lateral?

    A person from the plumbing trade walks in asking for “wye”.  Meanwhile, someone with a steamfitter background calls looking for a “45-degree lateral”. Which one is heavier? Trick question — they’re the exact same fitting.

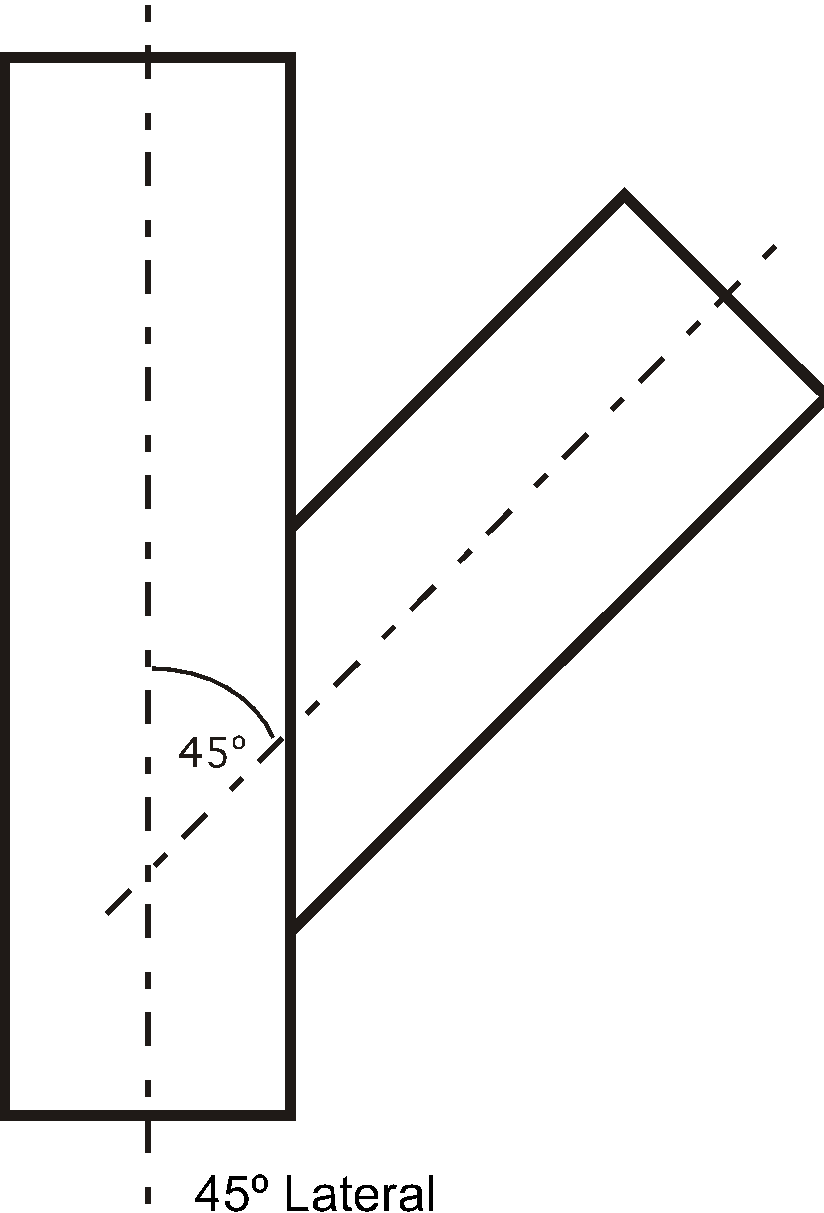

    To minimize ambiguity, our company standardized terminology decades ago. A fitting consisting of a straight through-run with a single branch at a 45º angle is classified as a lateral. A fitting featuring a main inlet that divides symmetrically into two 45º outlets—forming a Y-shaped configuration—is designated as a true wye, named for its resemblance to the capital letter “Y”, just like we learned to draw in grade school.

    Terminology Differences: Plumbing vs. Steamfitting

    Plumbers frequently work with PVC and ABS piping systems. In catalogs from manufacturers like Charlotte®, Genova®, and others in the plastics industry, what a steamfitter would call a lateral is typically listed as a wye. While both refer to the same fitting—a branch coming off at a 45º angle—the terminology varies by trade.

    Adding to the complexity, the plumbing trade refers to a 45-degree elbow as a “1/8 bend.” This is based on fractional terminology, where a 45º turn equals one-eighth of a full 360º circle.

    Understanding these naming conventions is pivotal when working across trades or reviewing manufacturer specifications. Not confused enough?  So, when a customer requests a “combination wye and 1/8 bend”—often shortened to “combo”—they’re referring to what we in the piping and fittings industry typically call a lateral tee.

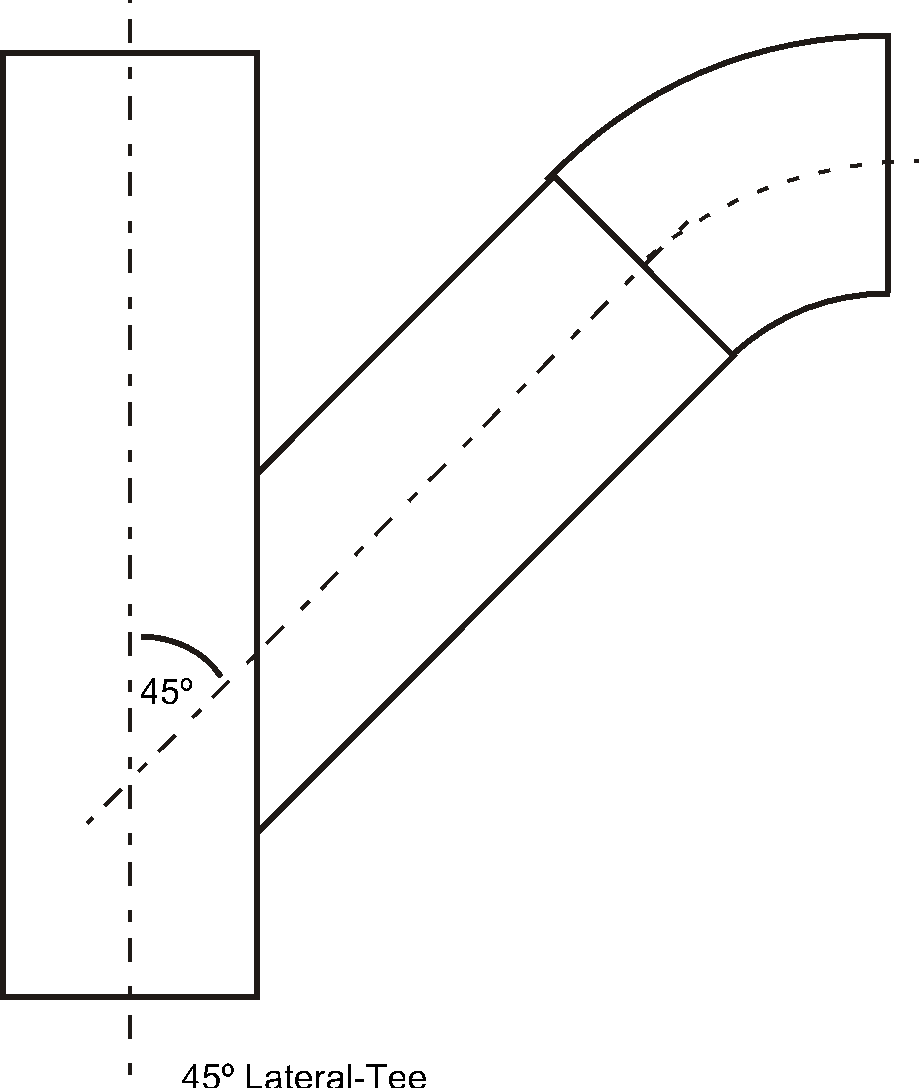

    A lateral tee is essentially a lateral fitting with a 45-degree elbow integrated (or welded) onto the branch, orienting it perpendicular to the main run.



    View Our Product Lineup

  2. Short & Long Elbows: Understanding the Nomenclature Across Industries

    Comments Off on Short & Long Elbows: Understanding the Nomenclature Across Industries

    When talking about pipe fittings, especially elbows, the terms “short” and “long” might seem simple. But as anyone who’s worked in different piping industries knows, these words can mean different things depending on the context. Misunderstandings are common, and they can lead to costly mistakes and delays. Let’s break it down.

    Definitions and Dimensions

    Short Radius Elbow (SR Elbow):

    • Definition: An elbow with a CenterLine Radius (CLR) equal to 1x the nominal pipe diameter.
    • Example: A 4″ short radius elbow has a 4″ CLR.
    • Use Case: Primarily used in tight spaces where layout constraints demand a tighter bend.

    Long Radius Elbow (LR Elbow):

    • Definition: An elbow with a CLR equal to 1.5x the nominal pipe diameter.
    • Example: A 4″ long radius elbow has a 6″ CLR.
    • Use Case: Most commonly used due to smoother flow and mitigating pressure drop.

    Sweep Elbow:

    • Definition: Any elbow with a CLR greater than 1.5x the nominal diameter.
    • Use Case: Used when even smoother flow is required or to minimize erosion and wear.



    Cross-Industry Communication Challenges

    This is where things get tricky. The term “short 90” doesn’t always mean the same thing depending on who’s saying it and what their industry background is.

    Industrial Market Interpretation (Paper, Chemical, Wastewater, etc.):

    • A request for a “short 90” usually refers to a short radius 90° elbow (CLR = 1x nominal diameter).
    • Common materials: carbon steel, stainless steel, and specialty alloys.
    • Connection types: Buttweld, socket weld, threaded.

    Sanitary / Food / Biopharmaceutical Market Interpretation:

    • A “short 90” often means a long radius 90° elbow with no tangents—essentially a smooth bend without straight sections on either end.
    • Typically used in Tube-OD sizes, not nominal pipe size (NPS).
    • Common materials: 316L stainless steel or other high-purity metals.
    • Connection types: Tri-clamp, butt weld, or orbital-weld prep.

    Many sanitary piping professionals are not even aware that short-radius elbows exist, simply because they’re not used in clean-in-place (CIP) or process-critical piping.



    The Problem of Assumption

    Let’s say a customer from a biotech plant asks for a “short 90.” You ship a short-radius elbow—what you thought they meant. But days later, you’re getting a call. The fitting’s wrong. The mistake cost time, money, and trust.

    Simple Fix: Ask Better Questions

    Before you ship, ask the right clarifying questions:

    1. “Are you looking for a short radius elbow or a long radius with no tangents?”

    2. “Can you tell me your tube or pipe size and application?”

    3. “Do you have a spec sheet or sketch you can share?”

    Or better yet—show them a photo or a diagram and ask them to point. This kind of visual confirmation often clears things up instantly.



    Summary Table:

    Industry Term Used What It Usually Means CLR
    Industrial Short 90 Short radius elbow 1x nominal diameter
    Sanitary/Biopharm Short 90 Long radius, no tangents (sanitary bend) 1.5x nominal diameter
    Universal Long Radius Long radius elbow 1.5x nominal diameter
    Universal Sweep Elbow Extra long radius >1.5x nominal diameter





    Final Word: Avoid any Confusion and Costly Mistakes

    Let’s take a moment to clarify what a customer means when they say “short” or “long” elbow. In mixed-industry environments, clear communication is not just helpful; it’s essential.
    Tip: Bookmark or share the Smooth-flow elbows page with your customers. It’s a simple, visual way to ensure you’re both speaking the same language

  3. Why Precision Instrument Tee Bodies are Crucial for Your Industry

    Comments Off on Why Precision Instrument Tee Bodies are Crucial for Your Industry

    Ever wonder about the small but mighty parts that keep our food, drinks, and medicines safe? In the world of food, beverage, and biopharmaceuticals, everything boils down to purity, safety, and efficiency. Every single piece in your processing line plays a huge role, and often, the real workhorses are those seemingly simple connectors that ensure everything runs smoothly and your product stays perfectly clean. Here at Appleton Stainless, we know these details matter, and that’s why we’re shining a spotlight on something you might not think much about: the instrument tee body.

    These aren’t ordinary fittings they’re precision-machined gateways that connect your critical instruments to the process line. Every thermometer, pressure gauge, and sensor you rely on plugs in here, delivering live data to keep operations tuned and product quality uncompromised. In environments where the slightest contamination can derail production, “close enough” is never acceptable. Accuracy drives everything you do. So when it’s time to machine instrument-tee bodies to exacting standards, choose Appleton Stainless we understand that perfection isn’t optional—it’s mission-critical.

    Why Precision is a Big Deal: More Than Just a Fitting

    When discussing precision in instrument tee bodies, we are referring to a multitude of critical factors that may directly influence your profitability and brand reputation:

    • Accurate Measurements: A precisely machined instrument tee body ensures your instruments are perfectly aligned and securely seated, delivering accurate readings every time. In processes where temperature, pressure, or flow rates are critical, even minor misalignments can result in incorrect data, compromised products, wasted resources, or potentially hazardous situations. This highlights why expert precision machining of instrument tee bodies is so essential.
    • (CIP/SIP Ready) In hygienic settings, precision is paramount. Smooth, crevice-free interior surfaces are essential to prevent the accumulation of bacteria and other contaminants. Any imperfection, rough spot, or dead end within the fitting can serve as a breeding ground for harmful microorganisms, rendering effective Clean-in-Place (CIP) and Sterilize-in-Place (SIP) protocols virtually ineffective. Precisely engineered instrument tee bodies facilitate cleaning, ensuring compliance with stringent hygiene standards. The perfectly smooth surface is achieved solely through proper machining of instrument tee bodies.

    Industry Applications: Where These Tees Make an Impact

    Let’s explore how instrument tees serve as essential components across key industries:

    Food & Beverage Applications:

    Safety and quality are paramount in the food and beverage sector, and instrument tee bodies play a crucial role by providing precise monitoring in critical processes such as:

    • Pasteurization Temperatures: Ensuring milk, juices, and beverages reach and maintain precise temperatures to eliminate harmful bacteria without compromising product integrity.
    • Fermentation Control: Accurately tracking temperature and pressure in brewing and fermentation tanks to create optimal conditions for yeast, resulting in consistent product quality.
    • CIP/SIP Systems: Offering reliable access points for sensors during Cleaning-In-Place (CIP) and Sterilization-In-Place (SIP) processes to verify that lines and tanks are effectively sanitized.

    Bio-Pharmaceutical Applications:

    In the biopharmaceutical industry, stringent regulations demand meticulous attention to detail, especially regarding product purity, process control, and validation. Instrument tee bodies are essential components, facilitating precise and reliable measurements in various critical areas:

    • WFI (Water for Injection) Systems: Water purity directly impacts the safety and efficacy of injectable medications. Instrument tees enable precise measurement of temperature and conductivity within WFI systems, ensuring water meets stringent purity standards by continuously monitoring conditions to detect even minor deviations.
    • Bioreactor Monitoring: Effective cell growth and optimal yields depend on precise environmental control within bioreactors. Instrument tees provide accurate and stable integration points for sensors that monitor critical parameters such as pH levels, dissolved oxygen concentrations, and temperature. This precision helps maintain ideal conditions, enhancing cell viability and productivity.
    • Sterile Processing: Maintaining sterility is crucial in pharmaceutical manufacturing to prevent contamination and ensure patient safety. Instrument tees securely connect monitoring devices in sterile environments, allowing reliable data collection without compromising sterility. This ensures the integrity of both the manufacturing process and the final pharmaceutical products.
    • Validation & Calibration: Regulatory compliance demands regular calibration and validation of instrumentation. Instrument tee bodies provide dependable and easily accessible points for installing calibration equipment. This supports accurate validation of instruments, maintaining compliance with regulatory standards and ensuring consistent product quality and safety.

    Material Spotlight: 316L Stainless Steel

    For instrument tee bodies used in hygienic processes, 316L stainless steel is the specified choice—and for good reason.

    Why Choose 316L?

    The “L” indicates a lower carbon content, a critical advantage when welding. Low carbon helps prevent carbide precipitation, a phenomenon that can cause corrosion at weld joints, compromising the metal’s structural integrity. By reducing carbon, 316L stainless steel ensures welded connections maintain exceptional resistance to corrosion.

    Additionally, 316L contains molybdenum, significantly enhancing its resistance to pitting and crevice corrosion—common issues in environments exposed to chlorides, which are frequently present in food, beverage, and pharmaceutical production processes.

    Instrument Tee Bodies

    Click to Download PDF Guide

    Furthermore, the inherently smooth, non-porous surface of 316L stainless steel is ideal for hygienic applications. It resists bacterial attachment, simplifies cleaning procedures, and maintains optimal sanitary conditions. During precision machining of instrument tee bodies, careful attention to surface finishing further improves these natural corrosion-resistant properties, delivering components perfectly suited to demanding hygienic environments.

    At Appleton Stainless, we know your success depends on reliable, ultra-clean processes. That’s why we’re all about starting with the best raw material. That begins with 316L stainless steel solid bar.

    Our commitment extends beyond mere product sales; we prioritize providing you with peace of mind. Every connection we establish adheres to the highest safety, efficiency, and product purity standards. Our exceptional machining capabilities ensure that instrument tees bodies meet all expectations, consistently delivering exceptional results.

    Reach out to Appleton Stainless today. Let’s chat about your specific needs and see exactly how our stainless steel instrument tees bodies can help move your business forward.

  4. The Purpose of Tangent Reducers in Sanitary Applications

    Comments Off on The Purpose of Tangent Reducers in Sanitary Applications

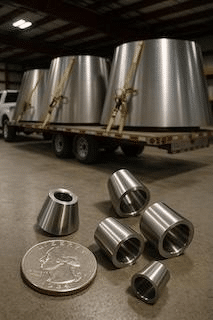

    In sanitary applications, a tangent reducer serves the purpose of connecting two pipes or tubing of different sizes while maintaining a smooth and hygienic flow path. The reducer allows for a gradual transition between the two pipe sizes, minimizing turbulence and avoiding areas where contaminants can accumulate.

    Common materials used in tangent reducers for sanitary applications include stainless steel (such as 304, 316L, or 317L), which is widely used due to its corrosion resistance and suitability for hygienic environments.

    Tangent reducers can come with various end types to facilitate proper connections.

    Some common end types include:

    1. Butt Weld: These reducers have plain ends that are designed to be welded directly to the pipes or tubing using a butt welding process. Butt weld connections provide a smooth and continuous inner surface, minimizing areas for bacteria buildup. These are frequently used in orbital welding environments.
    2. Beveled: Tangent reducers with beveled ends have an angled surface at the end, typically at a 37° or 45° angle. These reducers are intended for welding applications where the pipes or tubing have beveled ends that require multi-pass welding. Beveled ends allow for a smooth transition and better penetration during the welding operation.
    3. Grooved: Tangent reducers with grooved ends feature a groove or indentation around the circumference near the end(s). This type of end allows for a secure and reliable connection using grooved couplings. Grooved connections are commonly used in industrial and commercial applications where quick installation and disassembly are required.
    4. Clamp (Tri-Clamp): These reducers feature ends with a grooved profile that allows them to be secured using sanitary clamps. Clamp connections are widely used in sanitary applications due to their ease of assembly and disassembly for cleaning and maintenance.
    5. Threaded: Tangent reducers with threaded ends have male or female threads that enable them to be screwed onto corresponding threaded pipes or fittings. However, threaded connections are not hygienic due to the potential for thread crevices.
    6. Flanged: Some tangent reducers may have flanged ends, which are flat and have bolt holes for attaching the reducer to flanged pipes, fittings, valves, or equipment. Flanged connections are commonly used in large-diameter pipes or in applications where disassembly is less frequent.
    7. Van Stone (Loose Flange): Van Stone tangent reducers have a unique end design that incorporates a loose or free-spinning flange. The flange is not directly welded or connected to the reducer but is instead loosely positioned against it. This allows for easy alignment and infinite adjustment during installation. Van Stone ends are often used in applications where frequent disassembly and reassembly are necessary, such as in process piping systems.

    The selection of materials and end types for tangent reducers depends on factors such as the specific application requirements, the nature of the fluid being transported, and the prevailing sanitary standards. When selecting tangent reducers, it’s essential to consider compatibility with the existing piping system, installation requirements, and adherence to applicable sanitary regulations.

    Appleton Stainless can help you determine the best material and end type for your tangent reducer.  Contact Us today for more information.
